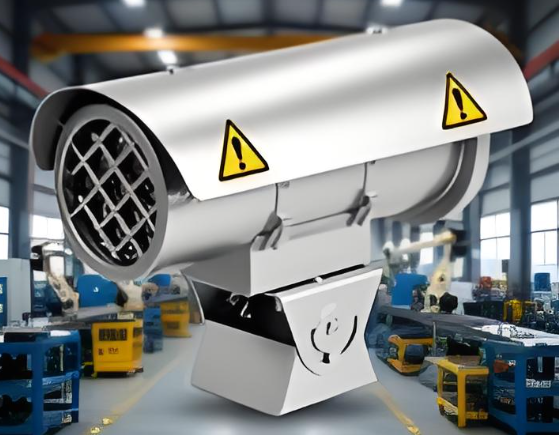

When the Machine Runs, Recording Begins: Three Ways to Integrate Internet Camera with PLC

In modern factories, production equipment and video surveillance often operate as two separate systems. When a PLC (Programmable Logic Controller) sends an alarm signal, the security camera might still be recording an empty aisle. And when you need to trace the cause of a equipment failure, you discover that critical footage was never captured.

This common pain point is now being solved through integration between internet camera systems and PLC controls. When a machine starts, alarms, or completes a production cycle, the camera automatically begins recording—this is what truly intelligent monitoring looks like.

This article explores three proven implementation methods. Whether you're a plant equipment manager, automation engineer, or security integrator serving industrial clients, you'll find a solution that fits your specific scenario.

Why Machine-Triggered Recording Matters: Three Essential Industrial Scenarios

Before diving into technical implementations, consider three real-world production scenarios. You'll quickly understand why integration isn't just a nice-to-have—it's a necessity.

Scenario One: Fault Tracing

An injection molding machine suddenly stops. The operator can't explain why, and the supervisor suspects human error. If an internet camera facing the operation area had automatically started recording when the alarm triggered, reviewing the footage would reveal the truth—perhaps material got stuck during loading. Post-incident tracing can't compete with real-time documentation.

Scenario Two: Production Rhythm Monitoring

On automated assembly lines, every completed process requires confirmation that critical operations were executed properly. By capturing PLC cycle signals and triggering cameras to record high-definition images or short videos, you enable both process optimization and quality traceability.

Scenario Three: Unattended Start-Stop Operations

During night shifts or weekends, production lines may idle without requiring continuous recording. When the PLC detects equipment startup, it automatically activates network camera positioned at key workstations. When production stops, cameras enter sleep mode. This approach saves storage space and extends equipment lifespan.

The common thread across these scenarios: surveillance should serve production, not the other way around.

Method One: Hardwired Triggering—The Most Reliable Classic Solution

For critical equipment like stamping presses, injection molding machines, and high-speed production lines, reliability comes first. Hardwired triggering is the most traditional—and most trustworthy—approach.

How It Works:
A PLC digital output connects through a relay isolator to the alarm input interface (I/O port) of an internet camera. When the PLC sends a high-level signal, the camera immediately triggers recording or snapshot capture.

Advantages:

• Highest real-time performance: Millisecond-level response with virtually no signal delay

• Network-independent: Integration remains effective even during network outages

• Strong anti-interference capability: Ideal for industrial environments with electromagnetic interference.

Ideal Applications:

• High-speed equipment like stamping presses and shears

• Critical workstations requiring absolute reliability

• New production lines with existing wiring infrastructure

Implementation Considerations:

• Select industrial-grade internet cameras with I/O interface support

• Install intermediate relays between PLC outputs and cameras to protect both devices

• Use shielded twisted-pair signal wire, routed away from power cables

Method Two: Network Protocol Triggering—The Flexible, Intelligent Modern Solution

If your factory already has a robust industrial network, or if you need to implement complex logic (like "record only after three consecutive alarms"), network protocol triggering offers a smarter approach.

How It Works:
The PLC transmits equipment status data to an upper computer or edge computing gateway via industrial protocols such as Modbus TCP, OPC UA, or Profinet. After parsing the signal, the gateway triggers the internet camera through ONVIF or CGI commands to execute recording, snapshot capture, or preset position calls.

Advantages:

• No additional wiring needed: Utilizes existing industrial networks

• Supports complex logic: Enables multi-condition triggering with AND/OR combinations

• Centralized management: One gateway can manage dozens of cameras

• Wireless camera compatible: Wi-Fi connected cameras work seamlessly for hard-to-wire locations

Ideal Applications:

• Workshops with established industrial networks

• Production lines requiring distributed deployment

• Mixed environments combining wired and wireless devices

Advanced Capabilities:
By integrating MQTT protocol, equipment status and video data can be uploaded simultaneously to cloud platforms, enabling remote monitoring and centralized management across multiple facilities. This approach is particularly flexible for wireless cameras deployed on mobile equipment like overhead cranes or AGVs.

Method Three: Wireless Sensor Integration—The Optimal Solution for Retrofit Projects

Old factory renovations, temporary test lines, and mobile equipment monitoring share one common challenge: wiring is simply too difficult. Wireless sensor integration was designed specifically for these scenarios.

How It Works:
A wireless I/O module (using ZigBee, LoRa, or 4G technology) connects to the PLC output. When the module detects a signal, it transmits wirelessly to a receiver, which then triggers the corresponding wireless camera to begin recording.

Advantages:

• Zero wiring: Minimal construction time with no production disruption

• High flexibility: Camera positions can be adjusted anytime

• Mobile equipment ready: Ideal for cranes, forklifts, and AGVs

• Low retrofit cost: No need to destroy existing floors or walls




Ideal Applications:

• Old factory renovation projects

• Temporary monitoring points

• Mobile equipment (overhead cranes, forklifts, AGVs)

• Outdoor long-distance deployments

Implementation Considerations:

• Choose appropriate wireless technology based on distance: ZigBee for indoor, LoRa or 4G for long range

• Consider power solutions for wireless cameras: PoE, high-capacity batteries, or solar

• Test signal penetration thoroughly, especially in metal-structured facilities

Selection Guide: Which Solution Fits Your Needs?

Regardless of which approach you choose, the goal remains the same: integrating internet cameras into your production systems as true components of intelligent manufacturing. When machines run, recording begins automatically—not just for incident documentation, but as active protection for production efficiency and safety management.
